Ely Prefinished Oak 1SL Glazed FD30 Fire Door

(108735)

Find the perfect Internal Doors. Call for personalised help on 01455 565 565

From £662.95 (inc VAT) ~~£737.95~~

Fire resistant for a minimum of 30 minutes
Glazed with certified fire-rated glass
10-year manufacturer's warranty
FSC-certified timber construction

size 1981 x 610 x 44mm

1981 x 686 x 44mm

2040 x 726 x 44mm

1981 x 762 x 44mm

2040 x 826 x 44mm

1981 x 838 x 44mm

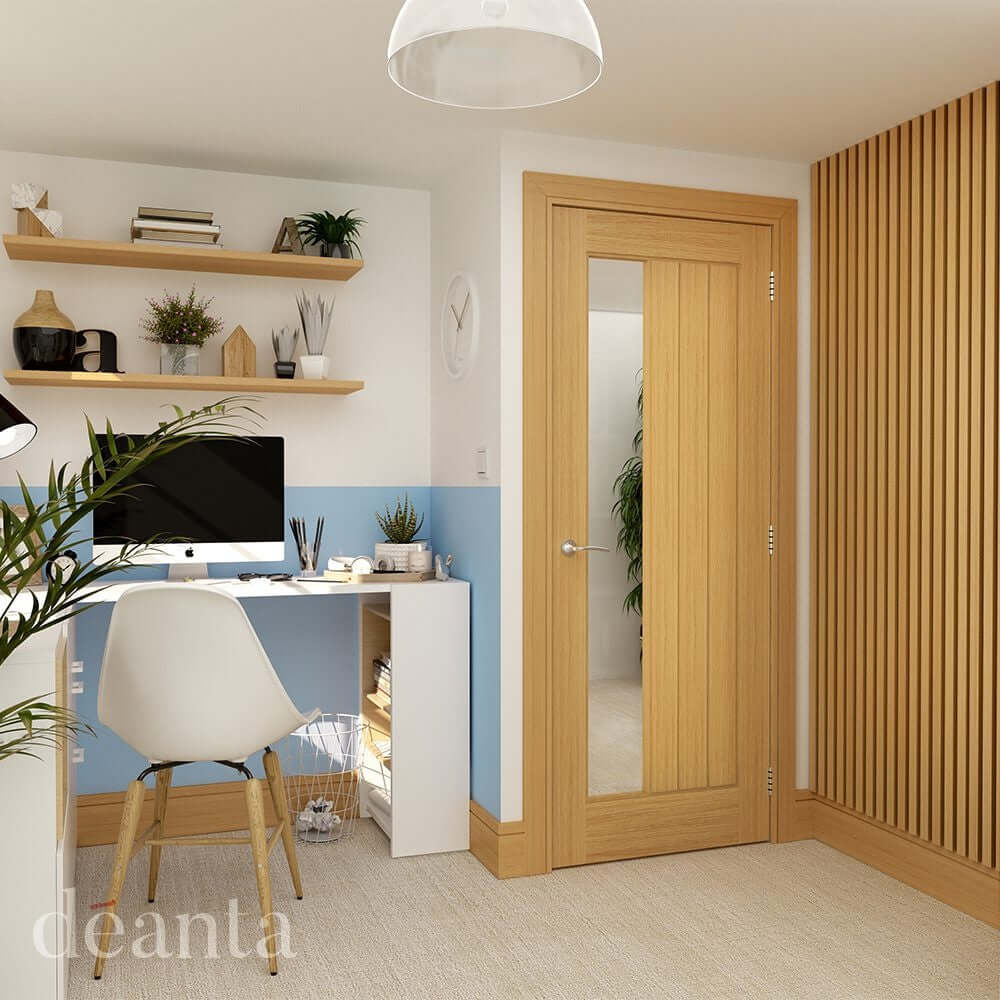

Lifestyle Ely prefinished oak 1 side light glazed internal door installed in a room setting

Ely Prefinished Oak 1SL Glazed FD30 Fire Door

From £662.95 (inc VAT) ~~£737.95~~

£662.95 (inc VAT) ~~£737.95~~

Product Details

Description

The Ely 1SL is the UK's most popular door style with a glazed side lite, a run of vertical panels with a slim strip of clear fire-rated glass set to one side. It is an FD30 door and arrives prefinished, ready to hang.

About the Ely Oak Glazed Side Lite Fire Door

The Ely is Deanta's take on the classic vertical-panel door, the most popular style in the UK, and this side lite version adds a slim glazed strip down one side to draw daylight into a hallway or landing. It complements almost any interior, old or new. Made by Deanta, one of the established fire-door manufacturers we range, it comes prefinished in an oak veneer and ready to install.

An oak veneer over a solid core

Like every genuine fire door, the Ely is not solid oak. It is built around a solid, fire-resisting core, faced with an oak veneer and edged with oak lippings. The core is what gives the door its strength, stability and fire performance, while the oak face brings the natural grain and warmth of an oak door. Because the face is a natural veneer, no two doors look exactly alike.

FD30 fire protection

The Ely is rated FD30, giving up to 30 minutes of fire resistance, and carries third-party certification approved by Certifire and the BM TRADA Q-Mark scheme. A fire door only performs to its rating as part of a complete, fitted set, so it should hang in a suitable fire-rated frame or lining, on the correct fire-rated hinges, with intumescent strips and smoke seals around the leaf. Hang it on three hinges as a minimum. FD30 suits most homes; where 60 minutes is needed, see our FD60 fire doors.

Glazed with fire-rated glass

A slim side lite of clear, certified fire-rated glass runs down one side of the door, so the glazing holds the line against fire and smoke just as the door does while bringing light into the space. The glass is factory-fitted into a tested aperture and should not be altered on site.

Trimming allowance

Being a Deanta fire door, the Ely has a generous trimming allowance: up to around 15mm can be taken off each edge, so it is straightforward to fit to a slightly out-of-square opening. Trim evenly, keep within that limit, and reseal any cut edge as it exposes bare oak.

Finishing & Care

The Ely is prefinished, so its faces arrive sealed at the factory and ready to hang, with no oiling of the main surfaces needed. Cutting in the hinges, latch and handle exposes bare oak at the mortices, and those cut areas must be sealed as you fit, using a compatible hardwax oil from our Treatex or Osmo range, taking care to keep oil off the glass. Our internal door treatments guide explains how.

Key Product Information

FD30 fire rated: up to 30 minutes of fire resistance, Certifire and BM TRADA Q-Mark certified.
Oak veneer face: an oak veneer over a solid, fire-resisting core with oak lippings, not solid oak.
Side lite glazed design: the popular vertical-panel Ely with a slim glazed side lite.
Prefinished: faces arrive sealed and ready to hang; seal the hinge, latch and handle cut-outs as you fit.
Generous trim allowance: up to around 15mm per edge to help fit awkward openings.
FSC certified, 10 year warranty: responsibly sourced timber, backed by Deanta's 10-year manufacturer's warranty.

Specification

Certification	FSC, Certifire & BM TRADA Certified
Usage	Internal Use
Product Weight Range	21kg-45kg
Trim Down By	15mm each side, 15mm top, 15mm bottom
Width	610mm or 24 Inch, 686mm or 27 Inch, 726mm or 29 Inch, 762mm or 30 Inch, 826mm or 33 Inch, 838mm or 33 Inch
Wood/Colour Type	Oak
Thickness	44mm
Height	1981mm or 78 inch, 2040mm
Fire Rating	FD30
Finish	Prefinished
Construction	Engineered Solid Core
Brand	Deanta Doors
Product Code	108735

Specification

Certification	FSC, Certifire & BM TRADA Certified
Usage	Internal Use
Product Weight Range	21kg-45kg
Trim Down By	15mm each side, 15mm top, 15mm bottom
Width	610mm or 24 Inch, 686mm or 27 Inch, 726mm or 29 Inch, 762mm or 30 Inch, 826mm or 33 Inch, 838mm or 33 Inch
Wood/Colour Type	Oak
Thickness	44mm
Height	1981mm or 78 inch, 2040mm
Fire Rating	FD30
Finish	Prefinished
Construction	Engineered Solid Core
Brand	Deanta Doors
Product Code	108735

Important Information

Please note that this product is prefinished. When installing door fittings and/or trimming the door size, be sure to treat newly exposed surfaces with a Hardwax oil to reseal those areas. The doors displayed on our website vary in appearance due to the different finishes being used by ourselves and customers alike; in addition to the natural qualities of the wood, this will also contribute to the door’s appearance. All hinges, handles, levers, and door accessories are for illustration purposes only and sold separately.

Frequently Asked Questions

What finish would you recommend on this door?

The faces arrive sealed, so the main surfaces need no oiling. Where you cut in the hinges, latch or handle, seal those freshly exposed edges with a compatible hardwax oil, keeping it off the glass. Most paints, stains and standard varnishes are unsuitable and can void the warranty.

Is this door fire-rated?

Yes. It is rated FD30 for up to 30 minutes of fire resistance and is Certifire and BM TRADA Q-Mark certified, with fire-rated glass in the side lite. It only performs to that rating as part of a complete fitted set, so use a fire-rated frame or lining, fire-rated hinges and intumescent strips and smoke seals.

How is the Ely Prefinished Oak 1SL Glazed FD30 Fire Door constructed?

It is built around a solid, fire-resisting core, faced with an oak veneer and edged with oak lippings, with clear fire-rated glass factory-fitted into the side lite aperture.

What warranty does the Ely Prefinished Oak 1SL Glazed FD30 Fire Door come with?

This product is listed with a 10 year warranty. To keep the warranty valid, keep your proof of purchase, fit and use the product for its intended application, and follow the supplier and manufacturer guidance for installation, care and any permitted trimming or alterations.
